히타치 ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US 발굴기 스윙 모터/스윙 기어박스/스윙 감소 기어
| Place of Origin | China |
|---|---|
| 브랜드 이름 | TQ |
| 인증 | CE,ISO |
| Model Number | 9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL |
| Minimum Order Quantity | 1 PCS |
| 가격 | Negotiable price |
| 포장 세부 사항 | 나무로 되는 케이스 또는 필요에 따라 |
| Delivery Time | 5-8 Weekdays |
| Payment Terms | Western Union,T/T |
| 공급 능력 | 300 PC /Month |
무료 샘플과 쿠폰을 받으려면 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| Product name | 9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL | 적용 가능한 기계 모델 | Hitachi ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US 굴삭기 |
|---|---|---|---|
| Applicable Industries： | Mechanical repair shops, retail, construction, energy, mining | category | SWING MOTOR |
| 조건 | 신규/재구축 | Brand | TQ |
| 강조하다 | ZX120 ZX130LCN 스윙 모터,ZX135US 스윙 모터,ZX120-3 ZX130-3 스윙 모터 |
||
제품 설명

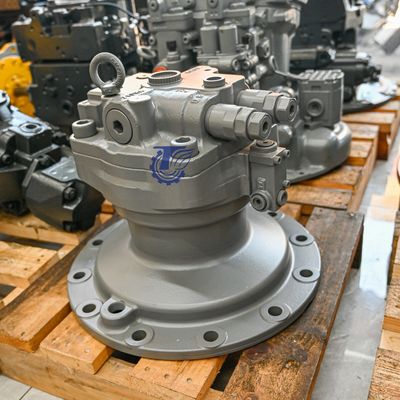

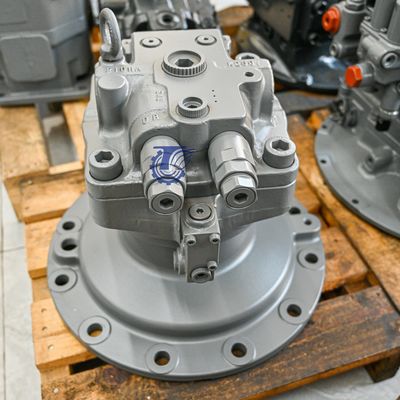

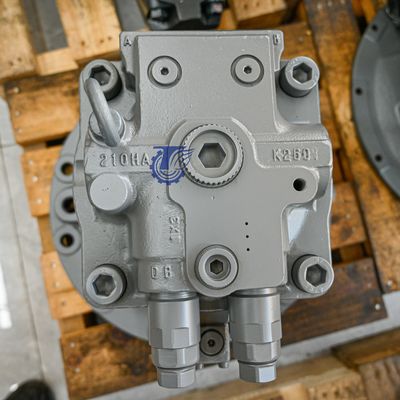

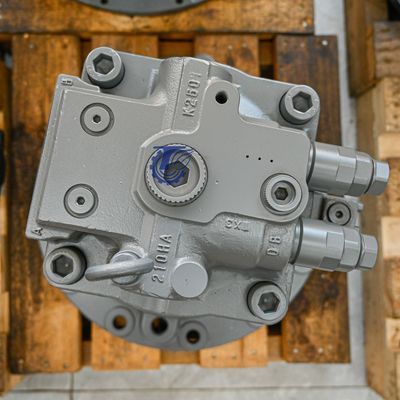

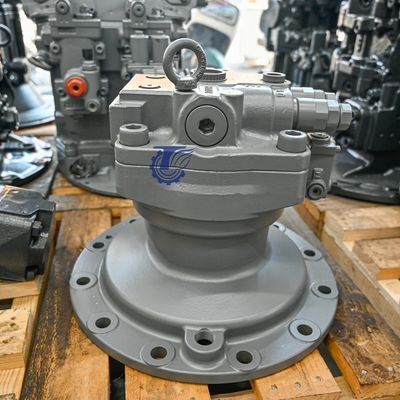

9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL
| PRODUCT DESCRIPTION | ||
| Model: 9177550 SWING MOTOR/SWING GEARBOX/SWING REDUCTION GEARA FOR HITACHI ZX120 ZX130LCN ZX120-3 ZX130-3 ZX135US EXCAVATORS PARTS AFTERMARKET ORIGINAL | category: SWING MOTOR | |
| Brand: TQ | Place of Origin:Other Country | |
| Condition: Original & Oem | Warranty: 12 months | |
| MOQ: 1 pcs | Production Capacity: 1000pcs /Month | |
| Standard or Nonstandard: Standard | Payment Term: L/C,T/T, Western Union, Tradeassurance | |
| Delivery Time: 1-3 days (depend on order) | Means of Transport: By Sea, Air or DHL/FEDEX/TNT/EMS | |
| Guarantee: We will check and send detailed pictures to buyers for confirmation | ||
| Parts on group MOTOR;OIL (SWING): | ||||
| Pos. | Part No | Qty | Parts name | Comments |
| 9177550 | [1] | MOTOR;OIL | I 9196961 <for assembly of machine> | |
| -9196961 | [1] | MOTOR;OIL | <for transportation> | |
| 1 | 8080152 | [1] | CASING | |
| 01A. | +++++++ | [1] | CASING;MOTOR | |
| 01B. | +++++++ | [1] | PLUNGER;ASSY | |
| 2 | 4320490 | [1] | SEAL;OIL | |
| 3 | 3085794 | [1] | SHAFT | |
| 5 | 991342 | [1] | RING;RETAINING | |
| 6 | 4402669 | [1] | BRG.;ROL. | |
| 7 | 940144 | [1] | RING;RETAINING | |
| 8 | 4396102 | [1] | PLATE;SWASH | |
| 10 | 2043442 | [1] | ROTOR | |
| 12 | 4413753 | [1] | SPRING;DISC | |
| 13 | 4413700 | [1] | BUSHING | |
| 14 | 8071556 | [9] | PISTON | |
| 15 | 3081727 | [1] | RETAINER | |
| 17 | 3087818 | [4] | PLATE;FRICTION | |
| 19 | 3075729 | [4] | PLATE | |
| 21 | 3084716 | [1] | PISTON | |
| 22 | 4413765 | [1] | O-RING | |
| 23 | 4413764 | [2] | O-RING | |
| 24 | 4434436 | [1] | SPRING;DISC | |
| 26 | 3089613 | [1] | PLATE;VALVE | |
| 28 | 9177595 | [1] | VALVE;BRAKE | I 9198979 <for assembly of machine> |
| 28 | -9198979 | [1] | VALVE;BRAKE | <for transportation> |
| 29 | 4413768 | [1] | BRG.;NEEDLE | |
| 30 | 4413761 | [2] | PIN;KNOCK | |
| 32 | A590916 | [4] | WASHER;SPRING | |
| 34 | M341650 | [4] | BOLT;SOCKET | |
| 36 | M492564 | [2] | SCREW;DRIVE | |
| 37 | 3088886 | [1] | NAME-PLATE | |
| 41 | 9134110 | [3] | PLUG | |
| 41A. | 957366 | [1] | O-RING | |
| 43 | 9134109 | [1] | PLUG | |
| 43A. | 4506408 | [1] | O-RING | |
| 45 | 4399892 | [1] | POPPET | |
| 46 | 4398846 | [1] | SPRING;COMPRES. | |
| 47 | 4452178 | [1] | WASHER;PLANE | |
| 50 | 4398889 | [1] | SPRING;COMPRES. | |
| Parts on group SWING DEVICE: | ||||
| Pos. | Part No | Qty | Parts name | Comments |
| 0 | 2044629 | [1] | SHAFT;PROP. | |
| 1 | 3083710 | [1] | SLEEVE | |
| 2 | A811095 | [1] | O-RING | |
| 3 | 4430041 | [1] | BRG.;ROL. | |
| 4 | 4411143 | [1] | SEAL;OIL | |
| 5 | 1027901 | [1] | HOUSING | |
| 6 | 4408119 | [1] | BRG.;ROL. | |
| 7 | 3083674 | [1] | NUT | |
| 8 | 4407745 | [1] | PLATE;LOCK | |
| 10 | J901020 | [2] | BOLT | |
| 11 | 2042965 | [1] | CARRIER | |
| 12 | 4176070 | [1] | PLATE;THRUST | |
| 13 | 4408102 | [3] | PIN | |
| 14 | 4414855 | [3] | BRG.;NEEDLE | |
| 15 | 3084940 | [3] | GEAR;PLANETARY | |
| 16 | 4414833 | [6] | PLATE;THRUST | |
| 17 | 4116308 | [6] | PIN;SPRING | |
| 19 | 3092035 | [1] | GEAR;SUN | |
| 20 | 2045146 | [1] | GEAR;RING | |
| 21 | M341440 | [12] | BOLT;SOCKET | |
| 23 | 2042964 | [1] | CARRIER | |
| 24 | 4244904 | [1] | PLATE;THRUST | |
| 25 | 4408122 | [3] | PIN | |
| 26 | 4430040 | [3] | BRG.;NEEDLE | |
| 27 | 3083741 | [3] | GEAR;PLANETARY | |
| 28 | 4408002 | [3] | PLATE;THRUST | |
| 29 | 3083740 | [1] | GEAR;SUN | |
| 31 | 3087949 | [1] | PIPE | |
| 33 | 94-2012 | [1] | PLUG | |
| 61 | 8082514 | [1] | COVER | (for transportation) |
| 62 | J011040 | [7] | BOLT;SEMS | |
| 62 | J271040 | [7] | BOLT;SEMS | T J901040 (for transportation) |
| J222010 | ||||
| 64 | 94-2011 | [1] | PLUG | (for transportation) |
| 65 | 3053093 | [1] | NAME-PLATE | (for transportation) |
| 66 | M492564 | [2] | SCREW;DRIVE | (for transportation) |
| 101 | 9177550 | [1] | MOTOR;OIL | I 9196961 (for assembly of machine) |
| 101 | 9196961 | [1] | MOTOR;OIL | (for transportation) |
| 102 | 927488 | [1] | RING;RETAINING | |
| 106 | 4298608 | [1] | CAP | |
| 107 | M341025 | [7] | BOLT;SOCKET | |
| 108 | 3053093 | [1] | NAME-PLATE | |
| 109 | M492564 | [2] | SCREW;DRIVE | |
| 114 | 4449144 | [1] | PIPE | |
| 115 | 3090862 | [1] | GAUGE;LEVEL | |
| 116 | 4449182 | [1] | PIPE | |
| 117 | 4436535 | [1] | SENSOR;PRES. | |
| 200 | 9196343 | [1] | SWING DEVICE | (WITHOUT MOTOR) |
